During the operation of electrical equipment, external environmental factors such as rain, dust, and corrosive substances always threaten the normal operation and service life of the equipment. In order to ensure the stable operation of electrical equipment in complex environments, the National Electrical Manufacturers Association (NEMA) has formulated a series of enclosure protection standards, among which NEMA 3 and 3R enclosures have become the preferred protection solutions for many industries due to their excellent protection performance and targeted design, and play an indispensable role in industrial production, infrastructure construction and other fields.
Definition of NEMA 3 and 3R enclosures
NEMA (National Electrical Manufacturers Association) is the National Electrical Manufacturers Association. Its standards are used to regulate the protection level of electrical equipment enclosures. NEMA 3 and 3R enclosures are protective enclosures designed for different outdoor environment requirements.
NEMA 3 enclosure
Designed to protect internal electrical equipment from rain, snow, and hail, and also has a certain dustproof ability to prevent a large amount of external dust from entering the enclosure.
NEMA 3R enclosure
“R” stands for “Rugged”. This enclosure mainly focuses on rain and ice and snow protection. Compared with NEMA 3 enclosures, it is relatively weak in dustproof performance, but performs well in structural strength and weather resistance.
Advantages and features of NEMA 3 and 3R enclosures
NEMA 3 enclosure
Fully waterproof and dustproof

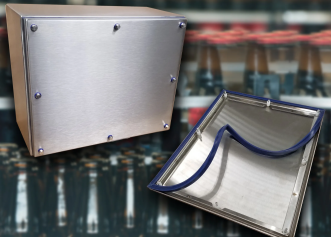

Special sealing design and drainage structure enable it to effectively resist rain, snow and hail, while blocking dust from entering, providing double protection for electrical equipment and ensuring stable operation of equipment in humid and dusty outdoor environments.
Good weather resistance
Made of corrosion-resistant materials, such as high-quality stainless steel, aluminum alloy or steel with special coating treatment, it can resist erosion by environmental factors such as ultraviolet rays and acid rain, extend the service life of the enclosure and reduce maintenance costs.
Flexible installation and adaptation
The design takes into account the installation requirements of different electrical equipment, and has a variety of installation methods and interfaces, which is convenient for combined installation with various electrical equipment and can be widely used in different types of electrical systems.
NEMA 3R housing
Sturdy and durable structure
The thicker material and reinforced structural design give it excellent impact resistance, and it can withstand collisions and falling objects that may occur in outdoor environments, effectively protecting the internal electrical equipment from damage.
Efficient rain and snow protection
The housing has good sealing performance, which can prevent rain and snow from entering the interior. At the same time, its surface design is conducive to the rapid sliding of rain and snow, avoiding the impact of accumulated water and snow on the equipment.
Economical and practical
On the premise of meeting basic protection needs, the manufacturing cost of NEMA 3R housing is relatively low, with a high cost-effectiveness, and is suitable for projects with certain requirements for protection performance but limited budget.
Types of materials for NEMA 3 and 3R enclosures
NEMA 3 enclosures

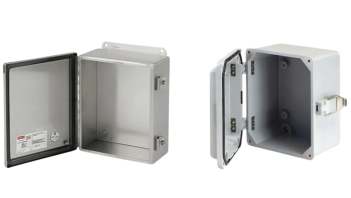

NEMA 3 metal enclosures
Mainly made of stainless steel, carbon steel or aluminum alloy, they have high strength and good corrosion resistance.
NEMA 3 plastic enclosures
Made of engineering plastics such as polycarbonate, ABS, etc.
NEMA 3R Enclosure
Heavy duty NEMA 3R enclosure
Made of thicker steel or high-strength alloy, the enclosure is rugged and can withstand heavy impact and harsh environments.
Lightweight NEMA 3R enclosure
Uses thinner materials to reduce cost and weight while maintaining certain protection performance.
Application fields of NEMA 3 and 3R enclosures
NEMA 3 enclosures
Industrial production

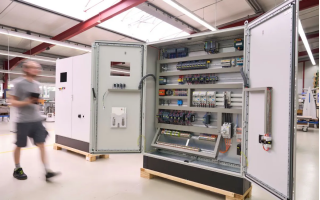

In factory workshops, mines and other places, it is used to protect electrical equipment such as motor controllers, inverters, and distribution boxes to prevent dust and water mist generated during the production process and external rain and dust from damaging the equipment, ensuring the continuity and stability of industrial production.
Energy and power
In power facilities such as substations and power plants, NEMA 3 enclosures can be used to protect key electrical equipment such as transformers, circuit breakers, and relay protection devices, so that they can operate normally under various weather conditions and ensure safe and reliable power supply.
Communication field
In communication base stations, data centers and other places, it is used to protect communication equipment, network switches, etc., to prevent the impact of rain and dust on the equipment, and ensure the stable transmission of communication signals.
NEMA 3R enclosure
Urban infrastructure
Widely used in urban street light control systems, traffic light control boxes, outdoor billboard distribution boxes and other facilities, it can effectively resist rain, ice and snow and other weather factors in urban environments, and ensure the normal operation of urban infrastructure.
Agricultural field
Used in electrical control boxes for agricultural irrigation equipment, electrical equipment protection in farms, etc., in outdoor farmland, farms and other environments, it protects electrical equipment from rain, moisture and minor collisions, and provides reliable power support for agricultural production.
Small commercial places
For outdoor electrical equipment protection in small shops, restaurants and other places, NEMA 3R enclosures, with their economical and practical characteristics, provide basic protection for electrical equipment in these places to ensure safe operation of equipment.
As an important part of the field of electrical equipment protection, NEMA 3 and 3R enclosures play a key role in different industries and scenarios with their unique advantages and characteristics. With the continuous advancement of industrial technology and the increasing requirements of various industries for electrical equipment protection, NEMA 3 and 3R enclosures will continue to innovate and improve to adapt to more complex and changing application environments.
Our factory has been deeply involved in the field of electrical equipment housing manufacturing for many years. We have rich experience and excellent technical strength in the production of NEMA 3 and 3R housings, and are committed to providing customers with high-quality, personalized protective housing solutions. From the cutting and molding of raw materials to the welding and painting of the housing, each production link is precisely controlled to ensure the stability of product quality.
